Bessel Functions of the First Kind: J

The functions \( J_0(x) \), \( J_1(x) \), and \( J_n(x) \) are the solutions of Bessel's differential equation

\[ x^2 \frac{d^2 y}{dx^2} + x \frac{dy}{dx} + (x^2 - \nu^2)\, y = 0 \]

that remain finite at the origin. For non-negative integer order \( n \) they admit the series

\[ J_n(x) = \sum_{m=0}^{\infty} \frac{(-1)^m}{m!\,(m+n)!} \left(\frac{x}{2}\right)^{2m+n}. \]

\( J_\nu(x) \) is oscillatory and decays like \( \sqrt{2/(\pi x)}\,\cos\!\left(x - \nu\pi/2 - \pi/4\right) \) as \( x \to \infty \).

Function shape

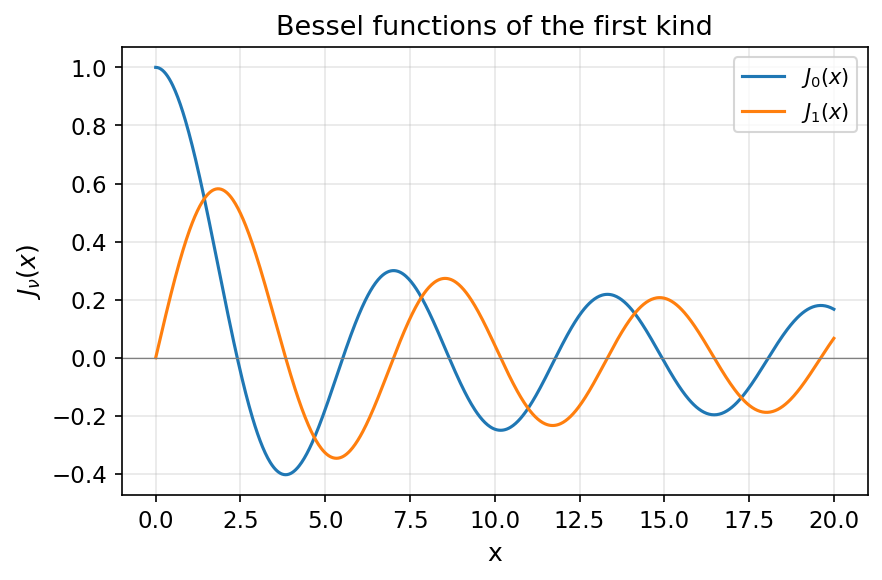

J0 and J1

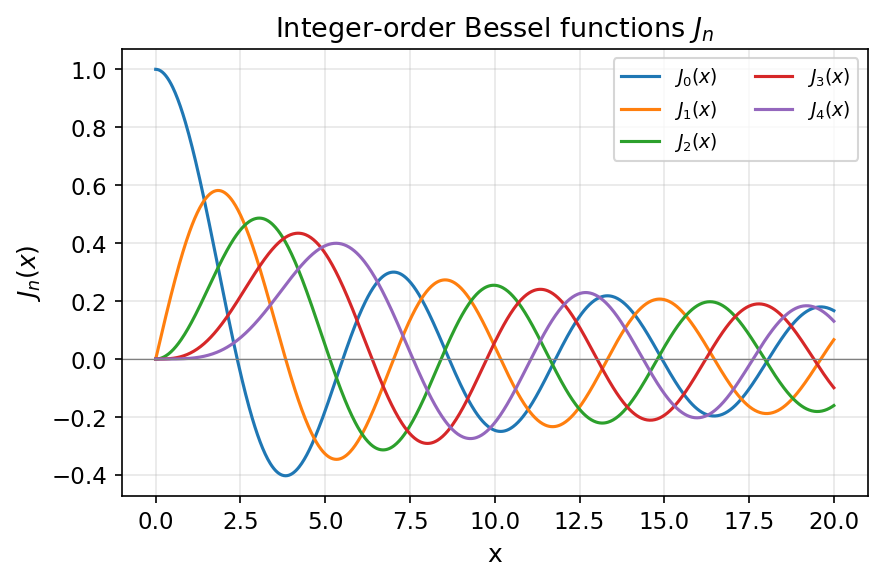

Integer-order J0 through J4

Domain and special values

\( x \) \( J_0(x) \) \( J_1(x) \)
\( 0 \) \( 1 \) \( 0 \)
\( -x \) \( J_0(x) \) (even) \( -J_1(x) \) (odd)
\( +\infty \) \( 0 \) \( 0 \)

The J family is defined for all real \( x \). besseljn(n, x) follows the parity of n: even n gives an even function, odd n an odd function.

Usage

real(BK) :: x(3), y(3)
x = [0.0_bk, 1.0_bk, 2.5_bk]
y = besselj0(x) ! elemental over the whole array
print *, besselj1(2.5_bk)
print *, besseljn(3, 2.5_bk) ! integer order n = 3
Definition bessels.f90:17
elemental real(bk) function, public besselj0(x)
Definition bessels.f90:67
elemental real(bk) function, public besselj1(x)
Definition bessels.f90:132
elemental real(bk) function, public besseljn(nu, x)
Definition bessels.f90:197

Accuracy and performance

besselj0/besselj1 use minimax polynomials near the origin, root- and extremum-centred polynomials on the middle range, and a Hankel asymptotic expansion for large \( x \) (the SQ2OPI/PIO4 phase form). On the benchmark machine they run roughly 2× faster than the gfortran intrinsics bessel_j0/bessel_j1 while matching them to within a few ULP. besseljn composes the fixed-order kernels through a stable recurrence.

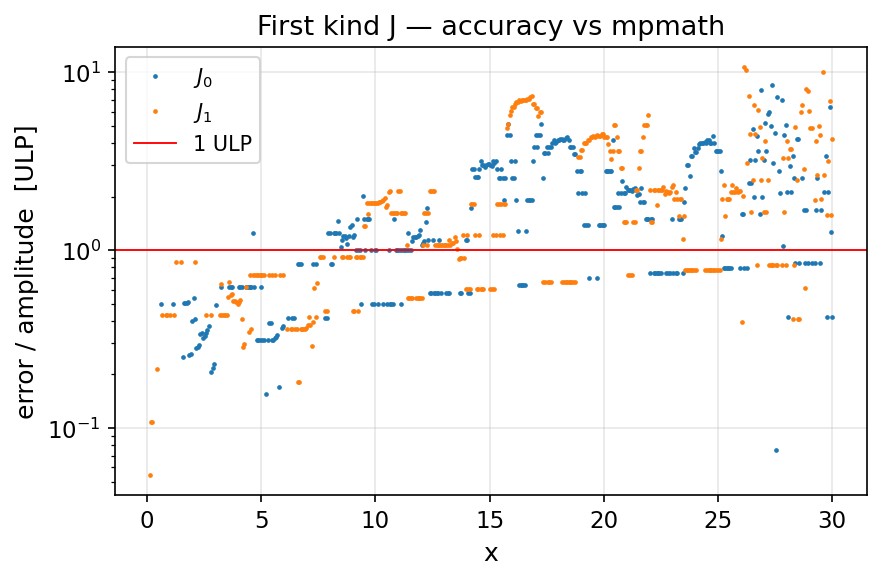

The figure below shows the relative error of this library against an mpmath arbitrary-precision reference, in ULPs of real64:

J0 / J1 relative error vs reference
See also
Bessel Functions of the Second Kind: Y
Modified Bessel Functions of the First Kind: I
Modified Bessel Functions of the Second Kind: K
Hankel Functions
