fitpack_fitters::fitpack_fitter Type Reference

Abstract base type for all FITPACK OOP fitters. More...

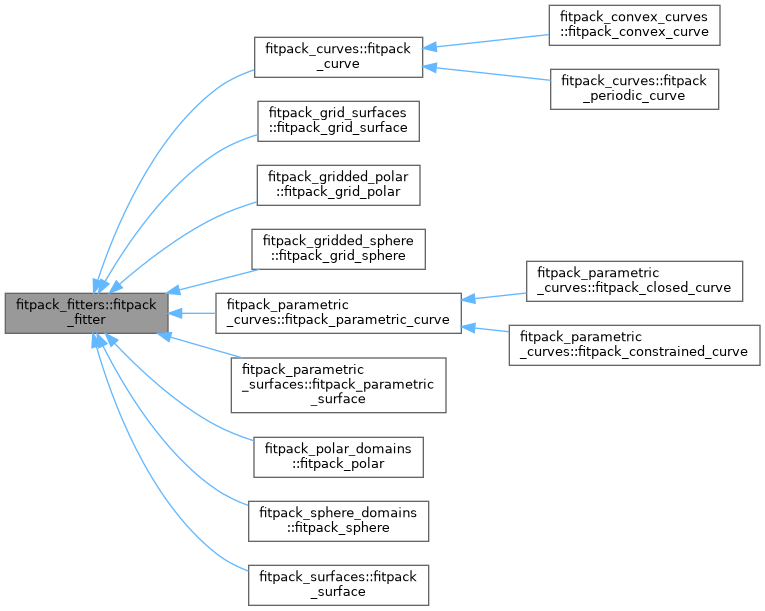

Inheritance diagram for fitpack_fitters::fitpack_fitter:

Public Member Functions
procedure, non_overridable	mse (this)
	MSE accessor (shared by all types)
procedure, non_overridable	core_comm_size (this)
	Base field helpers for comm (non-overridable, called by subtypes)
procedure, non_overridable	core_comm_pack (this, buffer)
	Pack base fields into communication buffer.
procedure, non_overridable	core_comm_expand (this, buffer)
	Expand base fields from communication buffer.
procedure, non_overridable	destroy_base (this)
	Base field reset (called by subtype destroy methods)
procedure(comm_size_if), deferred	comm_size (this)
	Deferred communication interface.
procedure(comm_pack_if), deferred	comm_pack (this, buffer)
procedure(comm_expand_if), deferred	comm_expand (this, buffer)

Public Attributes
integer(fp_flag)	iopt = IOPT_NEW_SMOOTHING
	Fitting state flag.
real(fp_real)	smoothing = 1000.0_FP_REAL
	Smoothing parameter.
real(fp_real)	fp = zero
	Weighted sum of squared residuals.
real(fp_real), dimension(:), allocatable	c
	B-spline coefficients.
integer(fp_size)	lwrk = 0
	Real workspace and its size.
real(fp_real), dimension(:), allocatable	wrk
integer(fp_size)	liwrk = 0
	Integer workspace and its size.
integer(fp_size), dimension(:), allocatable	iwrk

Detailed Description

Abstract base type for all FITPACK OOP fitters.

Stores the common fitting state: computation mode (iopt), smoothing parameter, weighted sum of squared residuals (fp), B-spline coefficients, and workspaces. Subtypes extend this with domain-specific data (knots, data points, etc.).

Member Function/Subroutine Documentation

comm_expand()

procedure(comm_expand_if), deferred fitpack_fitters::fitpack_fitter::comm_expand ( class(fitpack_fitter), intent(inout) this, real(fp_comm), dimension(:), intent(in) buffer )

pure virtual

comm_pack()

procedure(comm_pack_if), deferred fitpack_fitters::fitpack_fitter::comm_pack ( class(fitpack_fitter), intent(in) this, real(fp_comm), dimension(:), intent(out) buffer )

pure virtual

comm_size()

procedure(comm_size_if), deferred fitpack_fitters::fitpack_fitter::comm_size ( class(fitpack_fitter), intent(in) this )

pure virtual

Deferred communication interface.

core_comm_expand()

procedure, non_overridable fitpack_fitters::fitpack_fitter::core_comm_expand ( class(fitpack_fitter), intent(inout) this, real(fp_comm), dimension(:), intent(in) buffer )

final

Expand base fields from communication buffer.

core_comm_pack()

procedure, non_overridable fitpack_fitters::fitpack_fitter::core_comm_pack ( class(fitpack_fitter), intent(in) this, real(fp_comm), dimension(:), intent(out) buffer )

final

Pack base fields into communication buffer.

core_comm_size()

procedure, non_overridable fitpack_fitters::fitpack_fitter::core_comm_size ( class(fitpack_fitter), intent(in) this )

final

Base field helpers for comm (non-overridable, called by subtypes)

destroy_base()

procedure, non_overridable fitpack_fitters::fitpack_fitter::destroy_base ( class(fitpack_fitter), intent(inout) this )

final

Base field reset (called by subtype destroy methods)

mse()

procedure, non_overridable fitpack_fitters::fitpack_fitter::mse ( class(fitpack_fitter), intent(in) this )

final

MSE accessor (shared by all types)

Member Data Documentation

c

real(fp_real), dimension(:), allocatable fitpack_fitters::fitpack_fitter::c

B-spline coefficients.

fp

real(fp_real) fitpack_fitters::fitpack_fitter::fp = zero

Weighted sum of squared residuals.

iopt

integer(fp_flag) fitpack_fitters::fitpack_fitter::iopt = IOPT_NEW_SMOOTHING

Fitting state flag.

iwrk

integer(fp_size), dimension(:), allocatable fitpack_fitters::fitpack_fitter::iwrk

liwrk

integer(fp_size) fitpack_fitters::fitpack_fitter::liwrk = 0

Integer workspace and its size.

lwrk

integer(fp_size) fitpack_fitters::fitpack_fitter::lwrk = 0

Real workspace and its size.

smoothing

real(fp_real) fitpack_fitters::fitpack_fitter::smoothing = 1000.0_FP_REAL

Smoothing parameter.

wrk

real(fp_real), dimension(:), allocatable fitpack_fitters::fitpack_fitter::wrk

---

The documentation for this type was generated from the following file:

• fitpack_fitters.f90
